Datapath Fx4-SDI

Perfect Solution for Staging and Televised Video Walls
The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible.
Datasheet
Request Demo
Support

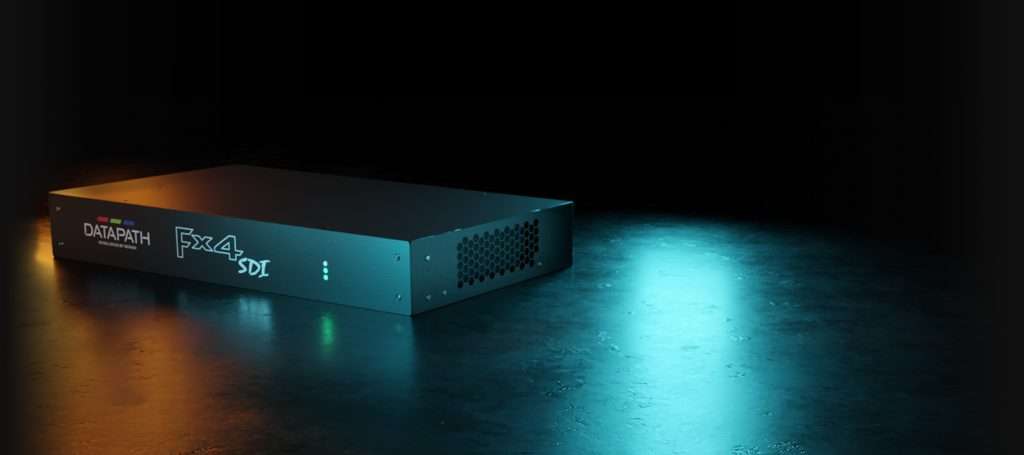

Datapath Fx4-SDi product category banner

Datapath Fx4-SDI

Perfect Solution for Staging and Televised Video Walls
The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible.
Datasheet
Request Demo
Support
Request Demo
Support
Datapath Fx4-SDi product
Datapath Fx4-SDi product
Datapath Fx4-SDi product
Datapath Fx4-SDi product
3D Model

Creativity Made Simple

Live events and broadcast markets face similar challenges when deploying video walls. Fast transmission speeds are paramount to project success, with large distances needing to be covered by vast networks of cables.

The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible. Datapath’s intuitive Wall Designer software and fully featured API means that whole projects can be quickly set up and easy to manage.

A choice of 3G SDI, DisplayPort1.2 and HDMI1.4 inputs, the Datapath Fx4-SDI offers up to 4K 4096 x 2160p at 60fps.

Unparalleled connectivity options

3 Input Choices
The Fx4-SDI features a choice of 3G-SDI, DisplayPort 1.2 and HDMI 1.4 inputs. The intuitive UI allows users to determine which input is used.

Network Connectivity
Dual Ethernet ports allow users to add the device to their networks. Ethernet loop though support on the second port means only one device in the chain needs to be physically connected.

Genlocked Input
A dedicated BNC connector allows users to SYNC with third party hardware.

Loop Through
A dedicated DisplayPort 1.2 loop through output allows users to link multiple devices. Specifically designed prevent any loss of resolution, the original capture signal remains unchanged.

Powered by Wall Designer

Wall Designer Wall Designer allows users to add displays from the ever-expanding database of monitors, visualise their content by adding inputs, backgrounds and adjusting capture regions. Finally, instantly configure all Datapath Fx4-SDI’s either via USB or the network ports.

Fx4-SDI Specifications

Video Input 1 x 3G SDI (1080p60 or equivalent up to 148.5MP/s)
1 x DisplayPort1.2 (2160p60 or equivalent up to 616MP/s)
1 x HDMI1.4 (2160p60 (4:2:0), 2160p30 or equivalent up to 297MP/s)
Video Output 4 x 3G SDI (1080p/60 or equivalent up to 165MP/s)
Loop-through: DisplayPort1.2 (locked to selected video input resolution)
SDI SMPTE Standards SMPTE ST 2048 up to 60Hz
SMPTE 274M up to 60Hz
SMPTE 296M up to 60Hz
Input Surface 4096 x 2160p at 60
8K x 8K maximum
Genlock Input Analog HD tri-level sync on dedicated BNC connector.
Any video input (SDI, HDMI, DisplayPort)
Ethernet Dual 100Base-T Ethernet ports with inbuilt managed switch
USB USB 2.0 Type B connector (full speed operation)
Firmware Support Updates supported via USB and Ethernet connection
Enclosure 316mm(l) x 172mm(w) x 42mm(h)
Weight 1.86kg
Power EC switched and fused mains connector 100-240V, 50/60Hz / 35W
Operation environment 0 to 35 °C /32 to 96 °F)
< 5% – 90%, non condensing
Storage environment -20 to 70 °C /-4 to 158 °F)
< 5% – 90%, non condensing
Warranty 3 year standard

All products are shipped with the latest software available, unless stated otherwise. Special requirements may be organised by contacting our Sales team.
